Best Practice: Threaded Fitting Assemblies
The integrity of your process and instrumentation connections relies heavily on installation practices and procedures. We talk in some detail about correct installation practices for Swagelok tube fittings here; however, we'll use this space to talk a little more about threaded fitting assembly and best practices.
Here, There and Everywhere
When assembling a Swagelok product containing a threaded connection, it’s important to remember the threaded connection should always be assembled prior to the other connection because of the rotation required to assemble the threaded connection.
Step by Step

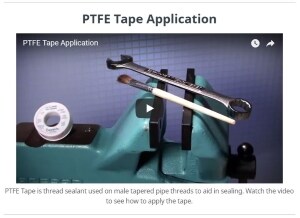

Following are instructions on how to assemble tapered threaded connections using PTFE thread tape:
Remove the thread protector from the male threads and remove any debris from the threads with a soft brush.
- Where possible, place the component containing the female threads into a vise. NOTE: Tighten the vise jaws ONLY on the flats, enough to securely hold the component in place and avoid damage to the component as a result of overtightening. Use a back-up wrench in applications where a vise cannot be used.
- While viewing the male threads from the open end, or face, of the threaded connection, locate the point where the root of the thread (dashed line) blends into the thread chamfer near the face of the fitting. This point is referred to as the
scratch mark.
- Place the edge of the tape on the crest immediately behind this point.
- use ¼ inch wide tape on ⅛, ¼ and ⅜ inch male tapered threads
- use ½ inch wide tape on larger male pipe threads
- While keeping the edge of the tape parallel to the face of the fitting, wrap the tape in the direction of the thread
spiral (clockwise) two to three revolutuions.
- Draw the free end of the tape around the threads tautly so that it conforms to the threads. Cut or tear off excess tape. Firmly press the tape into the threads. CAUTION: The tape must not overhang the first thread because the tape could shred and get into the fluid system media.
- Tighten the male end connection into the female end connection until finger-tight.
- Tighten the male end connection until wrench tight.
While there is no standard for torque or number of turns, ANSI/ASME B1.20.1-1983 states, “NPT taper pipe threads are intended to be made up wrench-tight and with a sealant whenever a pressure-tight joint is required.” Overtightening could result in stripping or galling the threads.
If the tapered pipe thread end connection happens to be on an elbow, tee, cross, valve, or pressure gauge where component position is critical, consider using a tube adaptor fitting so as to achieve the desired alignment of the component.
